Oval Gear Flow Meters

Bopp & Reuther oval gear flow meters are a direct volume positive displacement (PD) meter known for accuracy and longevity in the field. This simple, robust design means the oval gear meter is stable in harsh environments and maintains accuracy regardless of the liquid temperature, changes in viscosity, or pulsating flow. Our oval gear meters average 40-50 years in the field without need for recalibration.




Universal Application
Oval Gear Flow Meter

oval gear flow meters Bopp & Reuther-flowal-OR-universal-meters

Oval Gear Meter Series Flowal Product Information

Industrial Custody Transfer
Oval Gear Flow Meter

oval gear flow meters Bopp & Reuther-series-OI-classic-line-industrial-meter

Oval Gear Meter Series Ol Product Information

Series OaP Heavy Duty
Oval Gear Flow Meter

oval gear flow meters Bopp & Reuther-series-OV-heavy-duty-loading-meter-180x144

Oval Gear Meter – Series OaP Product Information

Oval Gear Flow Meters – Operating Principle

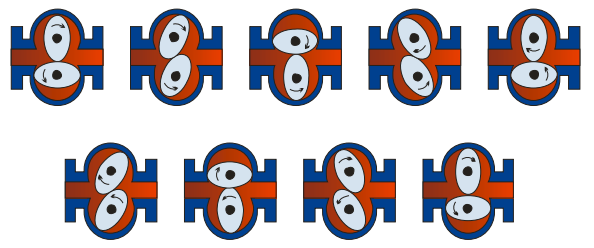

oval-gear-meter-operating-principle-diagram

Oval gear meter operation principle.

The measuring element of an oval gear meter consists of two toothed precision oval wheels which are driven by the fluid passing through the unit.  The number of revolutions is an exact measure of the volume.

Maintenance and recalibration requirements are minimal because of the lack of moving parts.  Often, the gear meter is selected over the Coriolis because of its accuracy and longevity in harsh environments where the Coriolis is susceptible to interferance from pressure or temperature changes and general wear.

Oval Gear Flow Meters in Action

Oval Gear Flow Meters – Common Applications

  • Chemical Production: caustic soda, potassium hydroxide, acetic acid, demineralized water
  • Food Industry: sugar solutions, syrups, oils, sauces, beverages, honey, molasses, milk products, juices, chocolate, alcohol, ethanol and coatings
  • Pharmaceutical Industry: alcohols, syrups, glycerines and coatings
  • Cosmetics Industry: shampoos, gels, perfumes and creams
  • Oil and Gas Industry: fuels, lubricants and petro-derivatives
  • Water and Wastewater Industry: chemicals, fluoride and acids
  • Pulp and Paper Industries: wax finishes, perfumes, dyes and acids in the pulp and paper industries
  • Printing: solvents and inks
  • Automotive: transmission fluid, glycol, low viscosity climatization liquids and hydraulic oil
  • Textiles: dyes, bleach and chemicals
  • Petroleum Industry: oils, gasoline, biodiesel, additives and kerosene
  • Paint: solvent and latex based paints
  • Shipbuilding: lubricating oil, fuels ,marine oil
  • Mining Industry: oils, fuels, lubricants
  • Metal Industry: heating oil, fuels, oils
  • Glue Industry: acrylic water based glue, solvents, cleaning agents

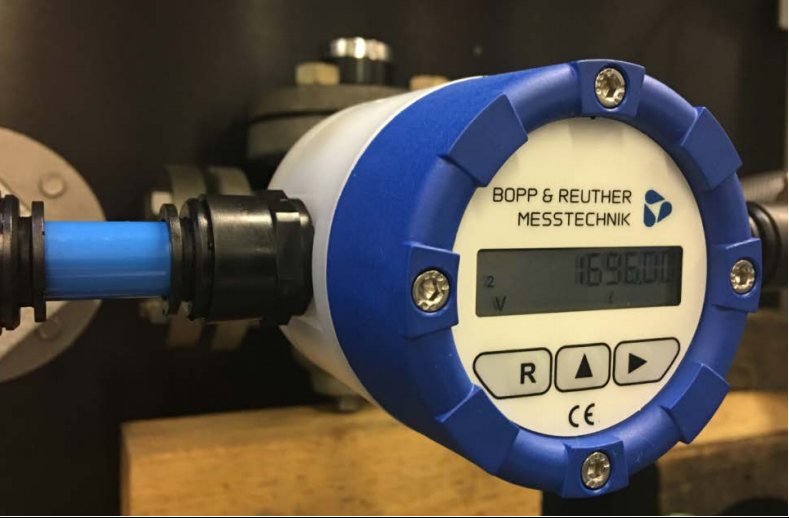

oval-gear-flow-meter-installed-in-chemical-process-metron-technology

Oval Gear Flow Meter in a Chemical Plant
