Flow Measurement

Volumetric and mass flow measurement is conducted using a variety of technologies. Metron Technology products cover a wide range of flow meter types. Our Best Seller is an economical Insertion Electromagnetic Flow Meter that can be fitted to large pipes for accurate measurement.

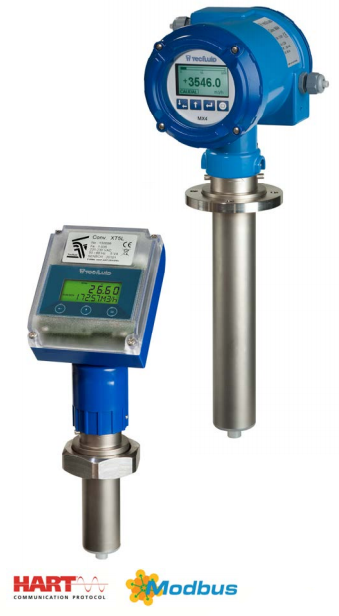

Inline Electromagnetic Flow Meter

Metron-Inline Electomagnetic-Meter-AllProducts-flow-measurementThese lightweight Inline Electromagnetic Flow Meters (Mag Meters) are ideal for measuring liquids in potable water, wastewater or any liquid applications where the liquid is conductive and applications require low pressure drop and low maintenance. Flow rate measurement is independent of density, temperature, viscosity and pressure, with no moving parts for low maintenance and low pressure drop.

Flow rate: 10 gpm to 480,000 gpm
Accuracy: ±3.5% reading value
Minimum electric conductivity: 20 μS/cm
Connections: inserted in pipes of 1 1/2″ (DN40) to 80″ (DN2000)
– Sensor: EN 1.4404 (AISI 316L), PVDF
– Sensor head: PVDF
– Electrodes: EN 1.4404 (AISI 316L), Hastelloy C, Tantalum, Titanium, Zirconium
Local indication, volume totalizer, 4-20 mA and pulse outputs
Alarms, empty pipe detection, etc. depending on converter model
HART and Modbus Communication protocols available on request

Inline Electromagnetic Flow Meter Product Catalog (PDF)

READ MORE about this Technology and it’s Applications

Other Flow Measurement Options

Heavy Duty PIT Insertion Magnetic Flow Meter


Contact us for more information

Variable Area Flow Meter


Contact us for more information

Differential Pressure Flow Meter


  • Orifice
  • Venturi
  • Nozzle
  • Insertion Pitot Tube

Contact us for more information
